Feekercn Prefabricated Expandable Container House, 20×19×8.3ft, 380 sqft, with Terrace & Glass Curtain Wall (Including 2 Bedrooms, 1 Living Room, 1 Kitchen, 1 Bathroom; Gable Roof/Black Frame/Dark Grey Insulated Wall & Floor Panels)
Color
Dark Grey Panels & Black Structure & Glass Door/Windows
Product Dimensions
228"L x 240"W x 98"H
Floor Area
380 Square Feet
Layout Inside the tiny home
2 Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room
Specification of The Feekercn House
·Layout Inside the tiny home: 2 Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room
·Main Usage: Tiny Home to live in for adults, or suitable for tiny store, cafe, homestay, etc.
·House Area: 380 sqft
·External Dimensions: L19 x W20 x H8.3 ft
·Folded Dimensions: L19 x W7.3 x H8.3 ft
·Weight: 7000 lb
1.Efficient Space Layout

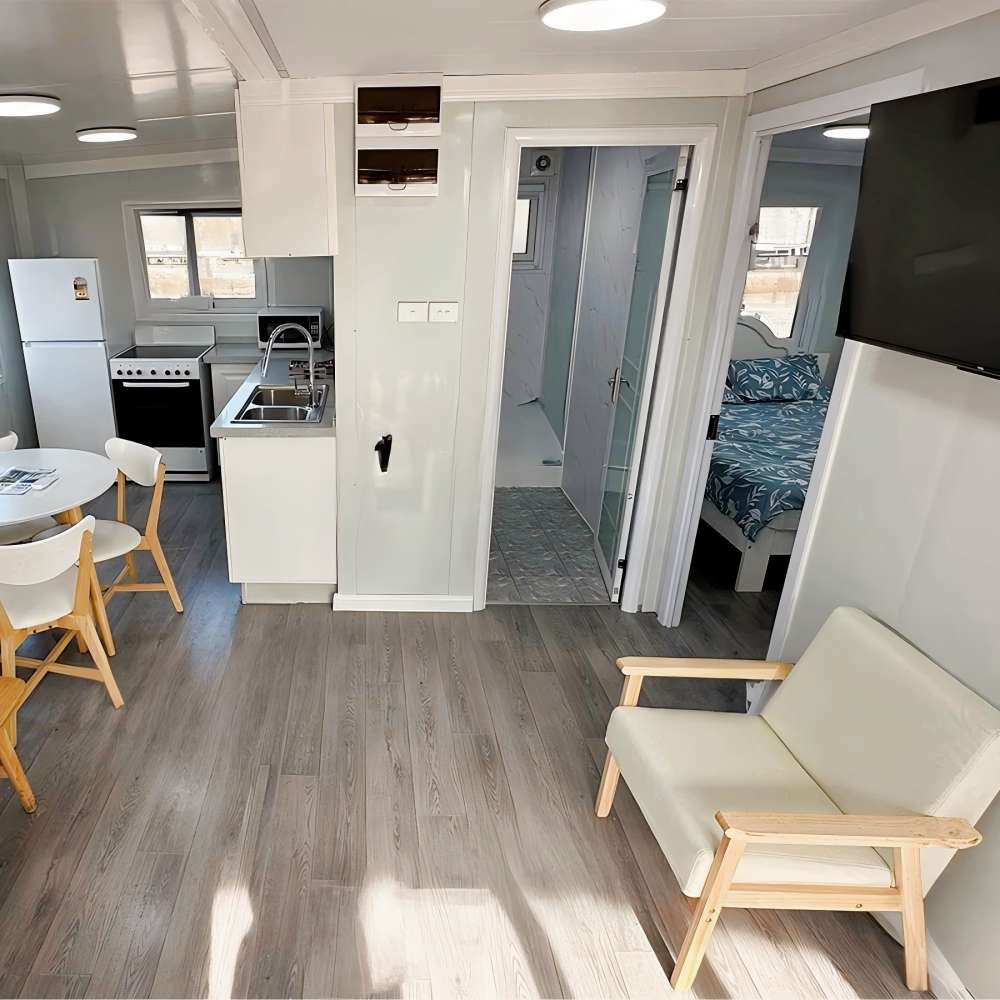

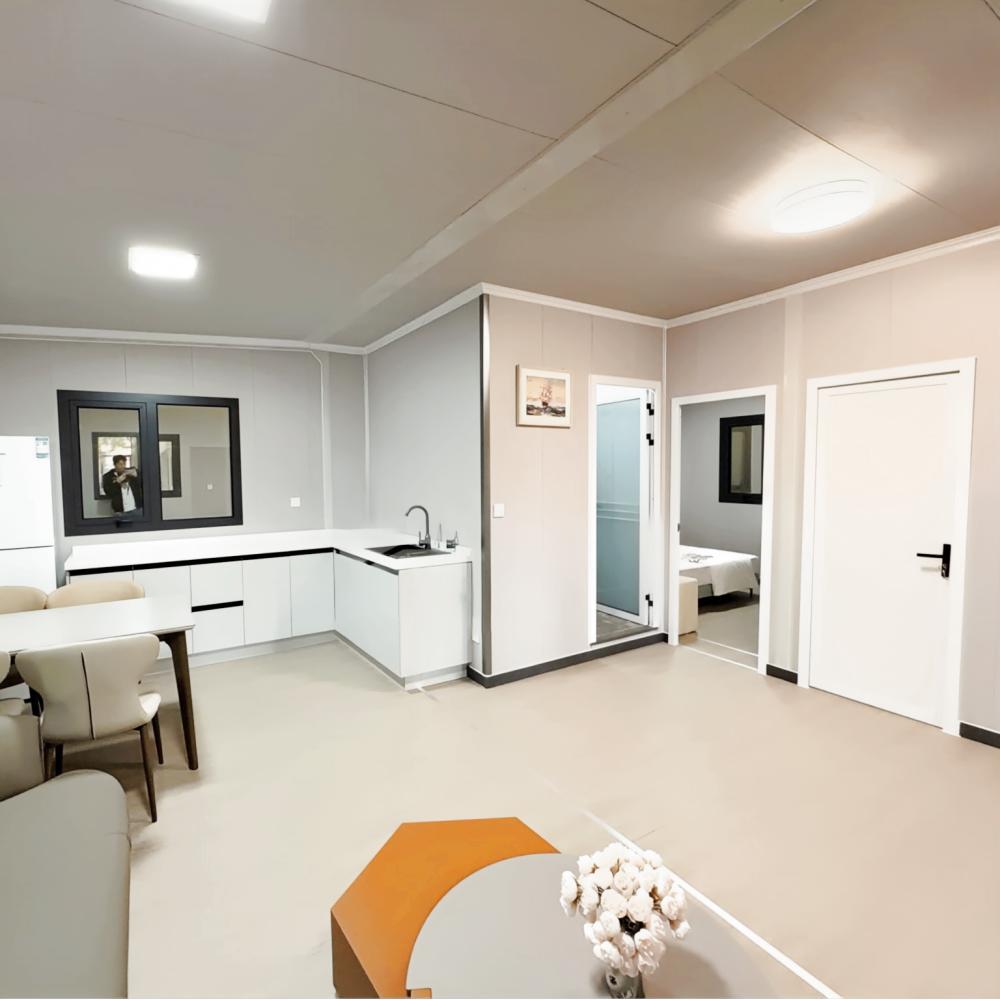

This 380 sqft prefabricated expandable container house features a well – planned layout of 2 bedrooms, 1 living room, an open – plan L – shaped kitchen, and a dry – wet separated bathroom. It fully meets living functional needs and achieves highly efficient space utilization.
2.Attractive Exterior Design

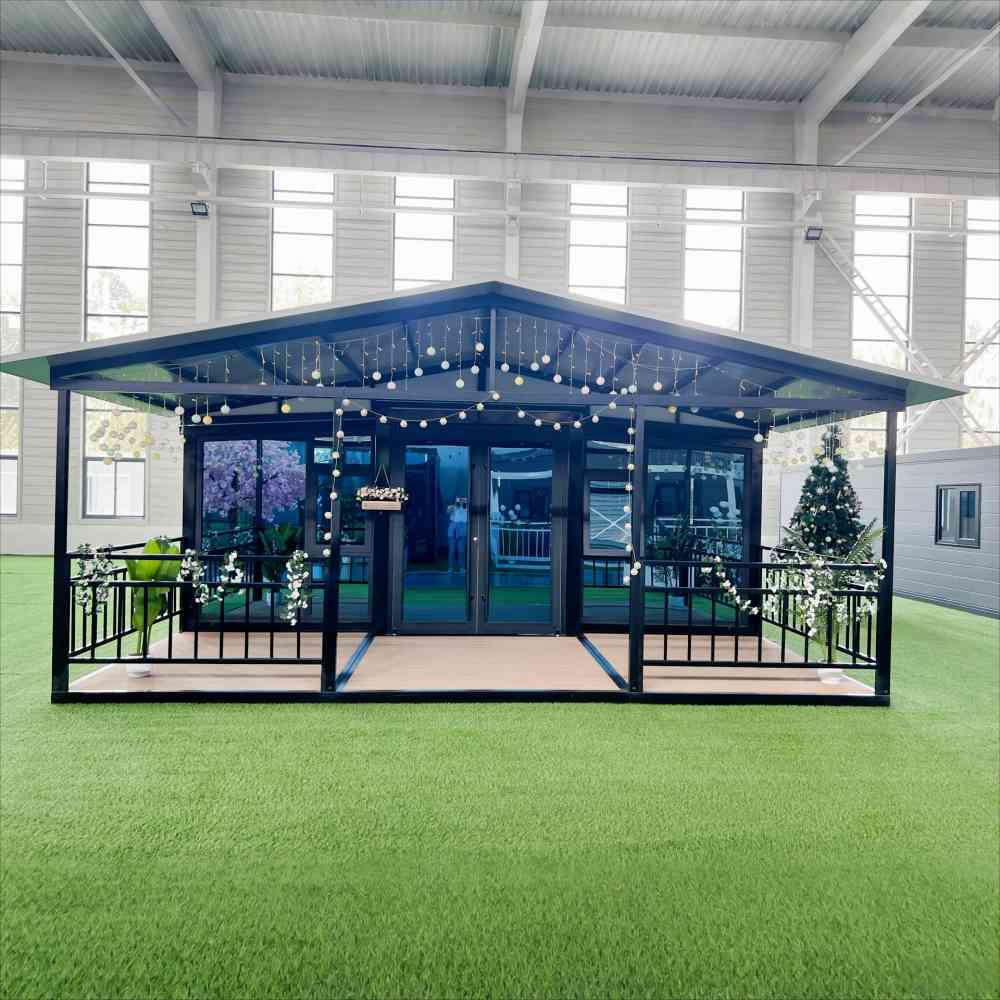

With a gable roof, black frame, dark grey insulated wall panels and floor, plus a full – glass entrance door & curtain wall and a terraced balcony with guardrails, it combines good looks and practicality, suitable for various scenarios.
3.Superior Material Performance
The dark grey wall and floor panels contain insulation materials, and the black broken – bridge aluminum windows offer good heat insulation and soundproofing. The prefabricated structure enables easy installation, helping to create a comfortable living environment.
4.Comprehensive Living Experience
From relaxing in the living room, resting in the bedrooms, cooking in the open kitchen to washing in the dry – wet separated bathroom, this integrated prefabricated expandable container house builds a complete living ecosystem.
5.Wide Scene Adaptability
With the specification of 20×19×8.3ft and prefabricated expandable features, it can be flexibly integrated into campsite homestays, temporary residences or leisure spaces, and can be quickly put into use.
features
Frame Construction & Wall Panels & Roofs

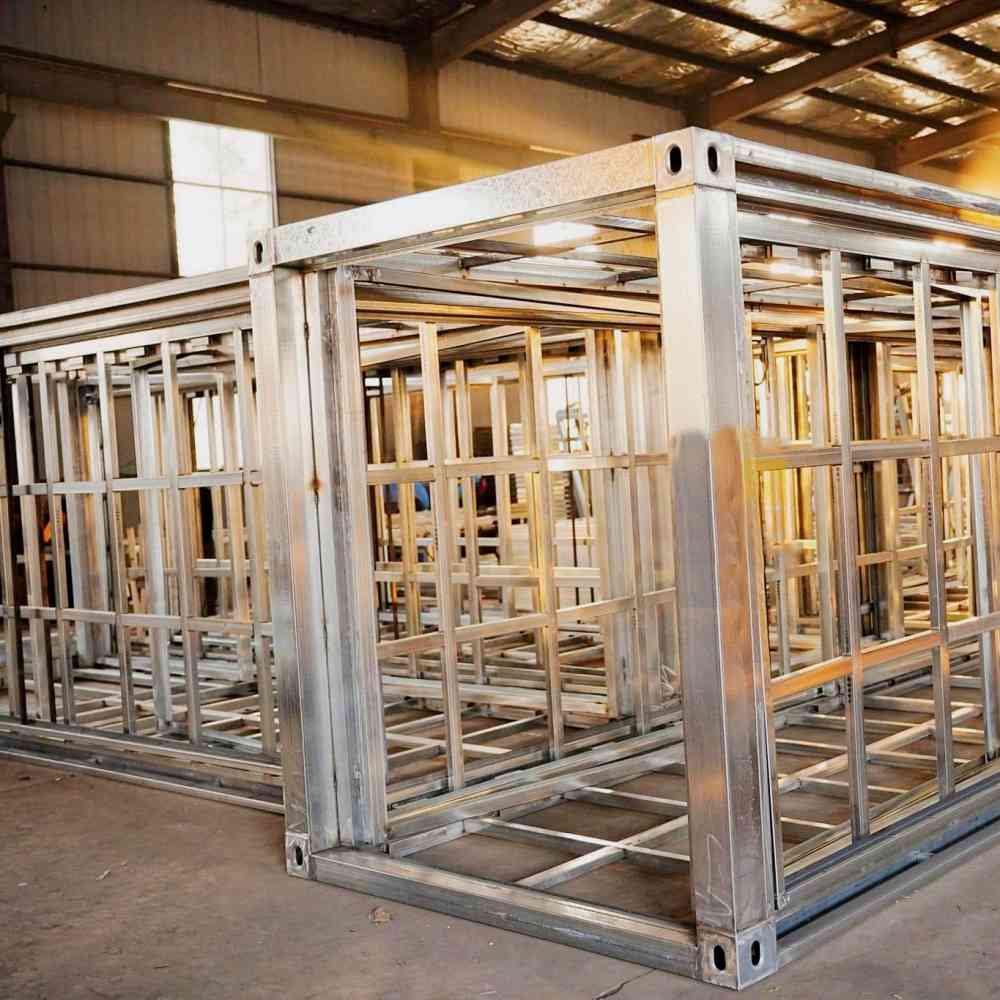

The Prefab House frame construction is grey, made of thick galvanized steel square tube. Exterior and interior wall panels are made of white galvanized steel sheets, with a 75cm thickness of flame-retardant foam board in between.
Spacious Doors
Included 1 glass entrance door, 1 bathroom door, and bedroom doors as customized requirement. All doors come with standard factory configurations, all equipped with locks.
Security & Bright Windows
9 windows in total (including small 1 for bathroom), all made of aluminum alloy, in white external suspended style with built-in security bars, mosquito screens and locks.
Luxury Flooring
Made with 18mm thick cement-fiber boards, topped with 2mm thick PVC material flooring in a light wood grain pattern.
Full Set Bathroom

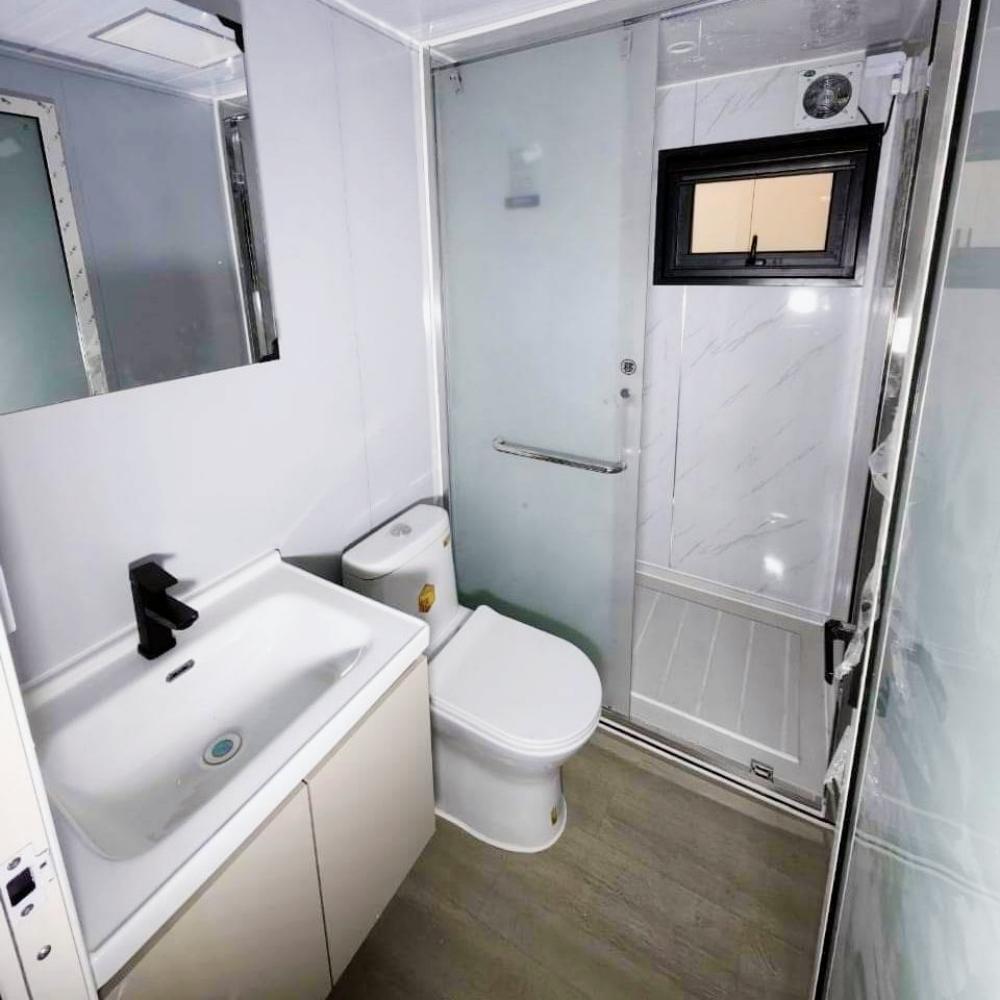

we provide a pre installed comprehensive dry-wet separated bathroom. The dry area comprises a toilet, adjustable hot and cold water faucet, a sink and a wall-mounted mirror.The shower area is independent and prefabricated with a showerhead and other standard accessories included
L Shaped Cabinet Set
Includes a set of white L-shaped cabinets with a white high quality sintered stone material countertop, an adjustable hot and cold water faucet, and a sink. Because of the enough space on cabinets surface, you can place some general cooking tools,microwave oven,etc.
External Water Pipe Connection
The external water pipe connections are installed ready. Included sewer pipe, drain pipe, cold water pipe and hot water pipe connections. So you need to complete the connections with your prepared main water source and sewage tank.
Electrical Configuration
The electrical setup complies with US standards and includes required distribution box, lights, switches, sockets and air conditioning sockets, with all sockets mounted at a height of 450mm from the floor.
notice info
Transportation Process
After you complete the payment and after the house prefabricated, as a special oversized item, this container home will be shipped from our factory to the nearest port via sea freight. From there, the fold out house will be delivered to your specified location via truck. Before the truck arrangement, We will contact you to schedule the delivery time for a smooth receipt.
Receiving Attention
Before purchase, you need to plan the location for receiving the mobile house, ensuring there is enough space and a flat hardened surface to unloading this prefab home. Based on the information of our container house folded dimension L20 x W7.3 x H8.3 ft and weight 7000 lb. You also need to arrange for appropriate unloading machinery, such as a crane, in preparation for the scheduled delivery time.
Installation Attention

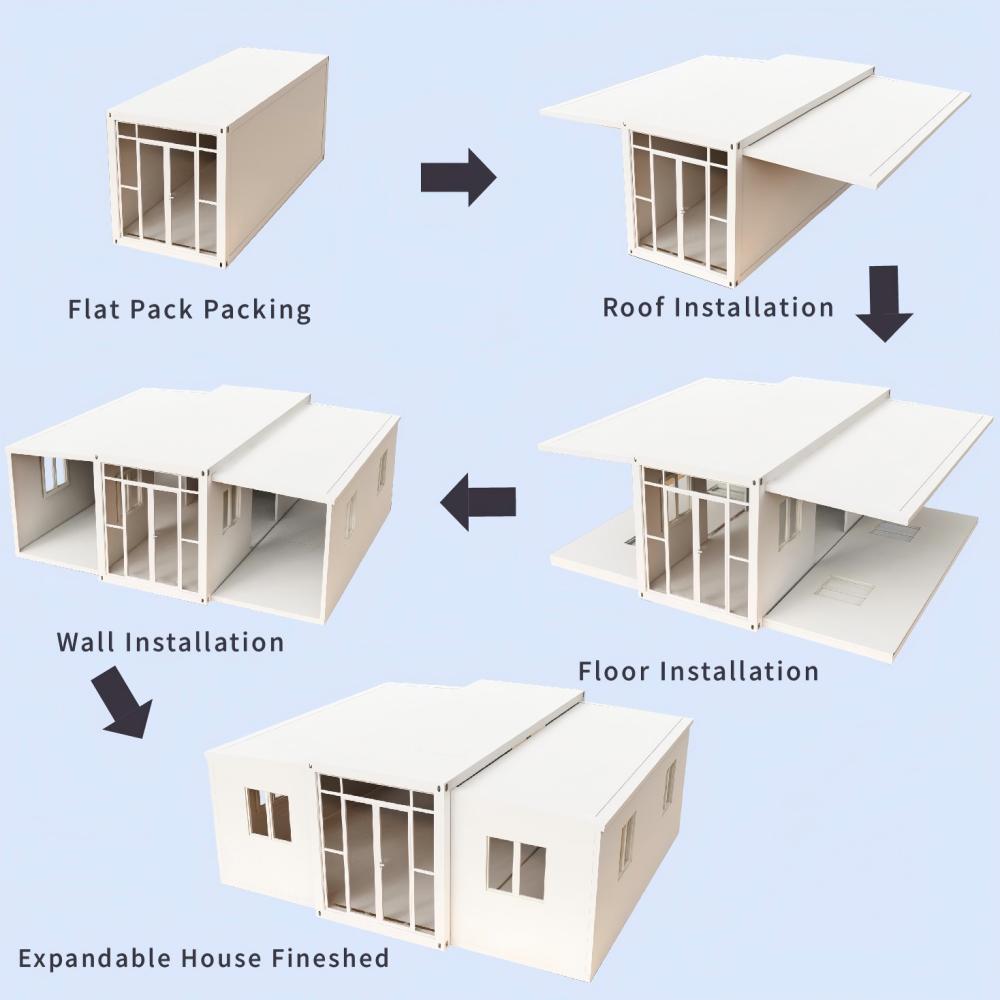

This manufactured home does not come with on-site installation workers; you will need to arrange for 3-4 people to assist with the setup. The fold up house features Hydraulic brace on both side panels, and the package includes installation tools such as Hinge pulley block and Wire rope for assembly. Please refer to the instruction and installation videos for guidance.
Customer Service
Regardless of any issues you may encounter when purchasing our container house, such as product-related concerns, transportation, delivery, installation, etc., please do not hesitate to contact our professional customer service team. We are committed to assisting you in resolving any problems you may face.
