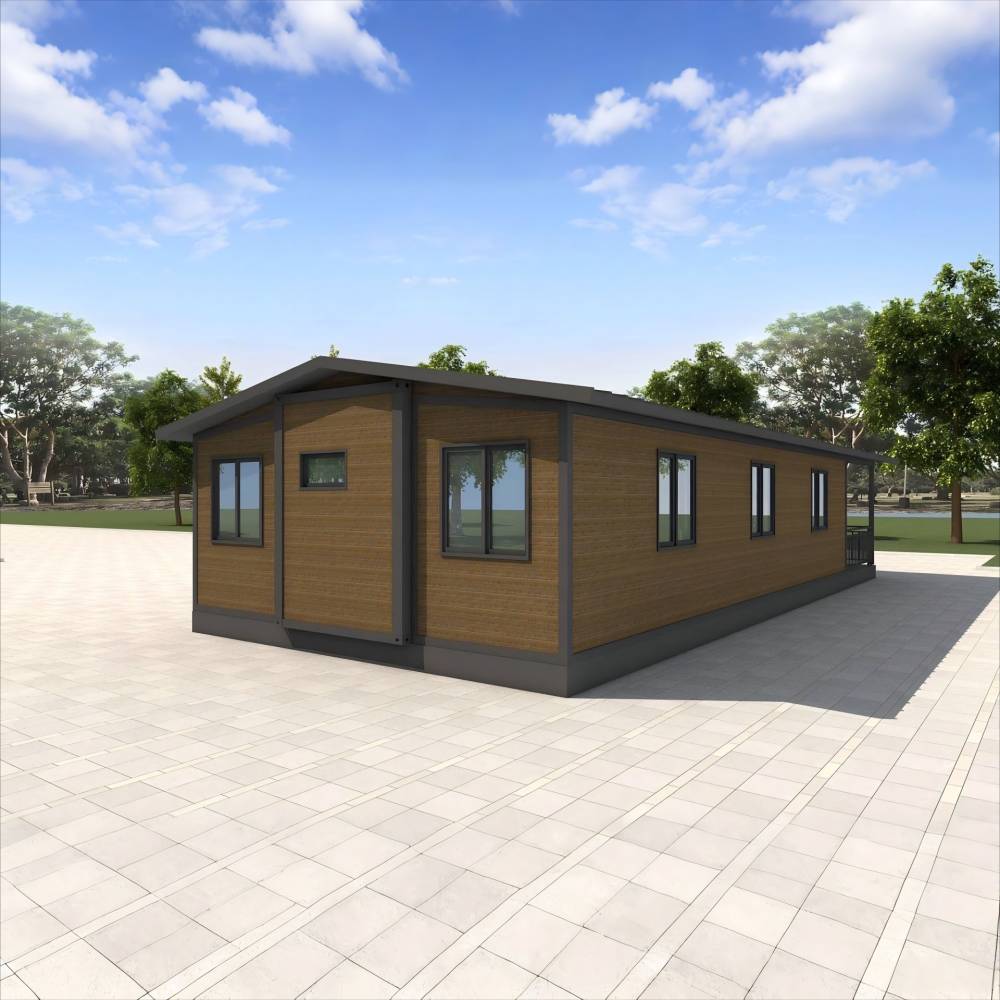

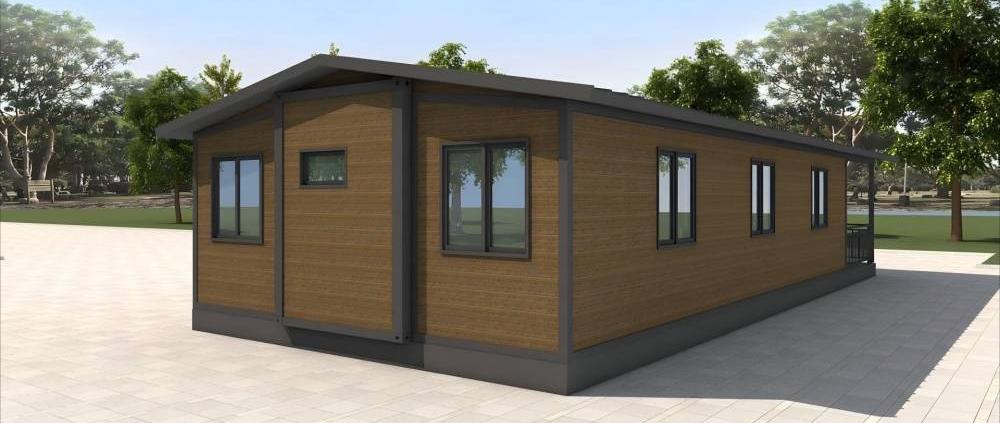

Feekercn Prefabricated Expandable Container Home, 30×20×8.3ft (56㎡) - Black Frame, Brown Insulated Panels (Full-Glass Entrance, Black Aluminum-Clad Windows, 3 Beds + L-Kitchen + Dry-Wet Bath)
Color
Wooden Color Panels & Black structure
Product Dimensions
360"D x 240"W x 98"H
Floor Area
600 Square Feet
Layout Inside the tiny home
Customized Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room
Specification of The 30FT granny flat
Product Name: 30FT Prefab Expandable Container House
Layout Inside the tiny home: 3 Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room, Customized Available
Main Usage: Tiny House to live in for adults
1.The prefab house basic information
·House Area: 600 sqft
·External Dimensions: L30 x W20 x H8.3 ft
·Folded Dimensions: L30 x W7.3 x H8.3 ft
·Weight: 9500 lb
2.Specification
·Frame construction: Black galvanized steel square tube frame.
·Wall Panels/Roof: Sandwich panels which exterior is white style carved metal board and interior is white galvanized steel, 50/75/100cm thickness of flame-retardant foam board in between.
·Doors: Included 1 entrance door, 1 bathroom door, and requierd bedroom doors. All doors come with standard factory configurations, all equipped with locks.
·Windows: 11 windows in total (including small 1 for bathroom), all made of aluminum alloy, in white external suspended style with built-in mosquito screens.
·Flooring: Made with 18mm thick cement-fiber boards, topped with 2mm thick PVC material flooring in a light wood grain pattern.
·Bathroom: Pre installed bathroom includes a shower stall with a silent exhaust fan. It comprises a toilet, hot and cold water faucet, a sink with storage cabinet and a mirror.
·Kitchen: Includes a set of white L-shaped cabinets with white sintered stone material countertop, and a sink.
·Electrical Configuration: The electrical setup complies with AU/US/EU standards and includes required distribution box, lights, switches, sockets and air conditioning sockets, with all sockets mounted at a height of requires.
1. Hierarchical Function Integration

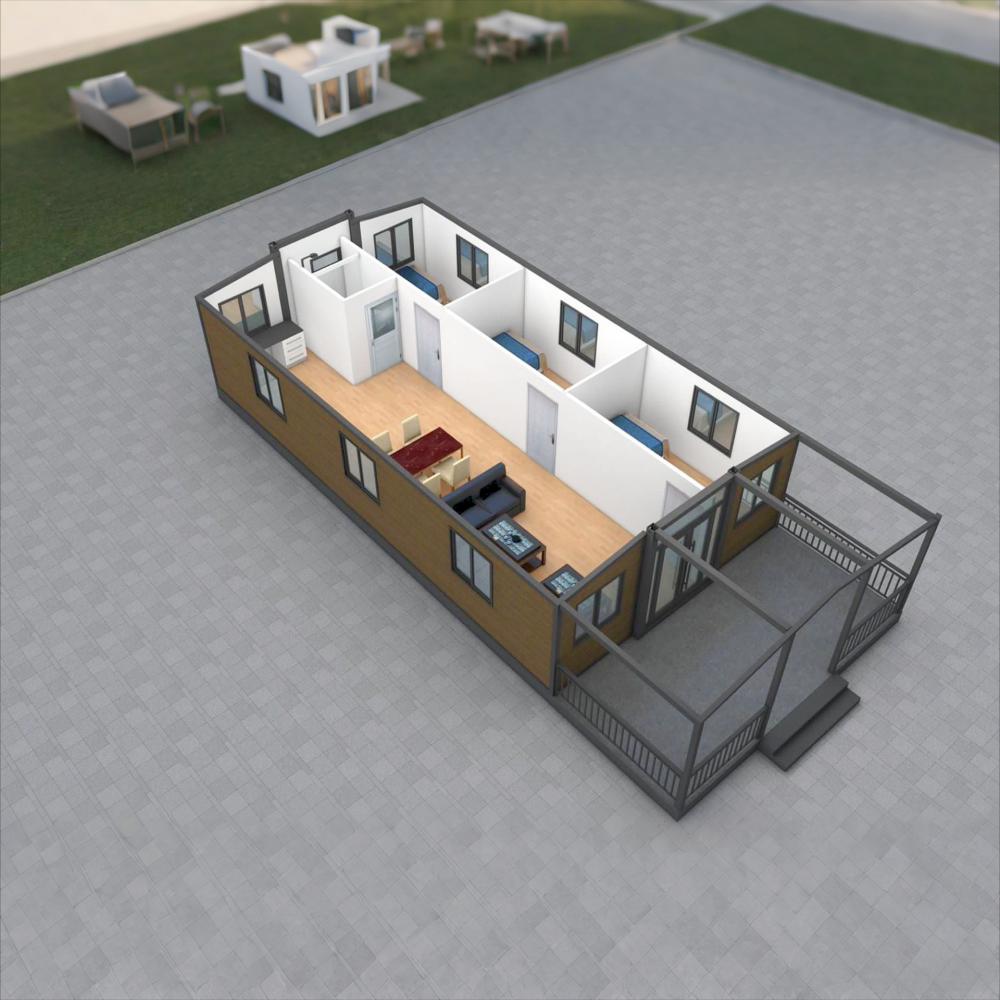

The 56㎡ prefabricated expandable container home features a black frame for structural support, with brown insulated panels defining 3 bedrooms, an open L-shaped kitchen, a dry-wet bathroom, and a bright living area. Achieving over 85% space utilization, it suits multi-generational living, estate homestays, and complex scenarios.
2. Passive Energy-Efficiency System
Brown insulated panels with polyurethane thermal barriers, combined with black aluminum-clad windows for soundproof sealing, and a full-glass entrance enhancing natural light. The black frame boosts structural stability, reducing winter energy use by 40% for a constant-temperature, low-noise living experience.
3. Luxury Aesthetic Design
The black frame contrasts with brown insulated panels for textural harmony; the full-glass entrance extends views, and black aluminum-clad windows outline sleek lines. It blends seamlessly into high-end scenarios like countryside campsites and private estates, improving visual integration by 60%.
4. Modular Quick-Assembly Logic
Factory-prefabricated modular components (integrated frame, panels, doors, and windows) enable on-site assembly in just 2.5 days. The black frame resists 10-level winds, and brown panels offer 15-year weather resistance, supporting relocation and reuse while cutting lifecycle costs by 35%.
5. Full-Dimensional Safety Protection
The bathroom uses anti-slip flooring and waterproof panels; the kitchen has fire-resistant countertops. The distribution box includes overload protection, black aluminum-clad windows offer anti-pry sealing, and the black frame is galvanized for rust resistance — creating a safety loop from structure to details.
notice info
Transportation Process
After you complete the payment, we will at first send you a small package with product instruction. Then after the house prefabricated, as a special oversized item, this container home will be shipped from our factory to the nearest port via sea freight. From there, the fold out house will be delivered to your specified location via truck. Before the truck arrangement, We will contact you to schedule the delivery time for a smooth receipt.
Receiving Attention
Before purchase, you need to plan the location for receiving the mobile house, ensuring there is enough space and a flat hardened surface to unloading this prefab home. Based on the information of our container house folded dimension L30 x W7.3 x H8.3 ft and weight 9500 lb. You also need to arrange for appropriate unloading machinery, such as a crane, in preparation for the scheduled delivery time.
Installation Attention
This manufactured home does not come with on-site installation workers; you will need to arrange for 3-4 people to assist with the setup. The fold up house features Hydraulic brace on both side panels, and the package includes installation tools such as Hinge pulley block and Wire rope for assembly. Please refer to the instruction and installation videos for guidance.
Customer Service
Regardless of any issues you may encounter when purchasing our container house, such as product-related concerns, transportation, delivery, installation, etc., please do not hesitate to contact our professional customer service team. We are committed to assisting you in resolving any problems you may face.
