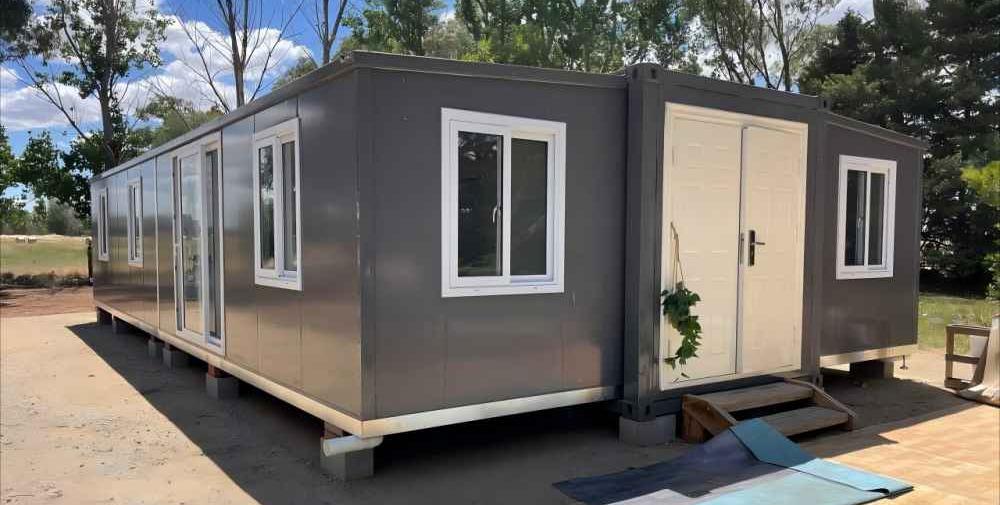

Feekercn Prefab Expandable House, 40×20×8.3ft (72㎡, Grey Insulated System) - Container Home with 3 Beds, L-Kitchen, Dry-Wet Bath (White Entry Door/PVC Windows, Modular Assembly)
Color
Grey Panels & Structure & White Glass door/windows
Product Dimensions
480"L x 240"W x 98"H
Floor Area
800 Square Feet
Layout Inside the tiny home
3 Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room
Specification of The Feekercn 40FT tiny home
·Layout Inside the tiny home: 3 Bedrooms, 1 Bathroom, 1 Kitchen, 1 Living room
·Main Usage: Prefabricated Container House to live in for adults
·House Area: 800 sqft
·External Dimensions: L40 x W20 x H8.3 ft
·Folded Dimensions: L40 x W7.3 x H8.3 ft
·Weight: 13000 lb
features
1. Hierarchical Space Planning

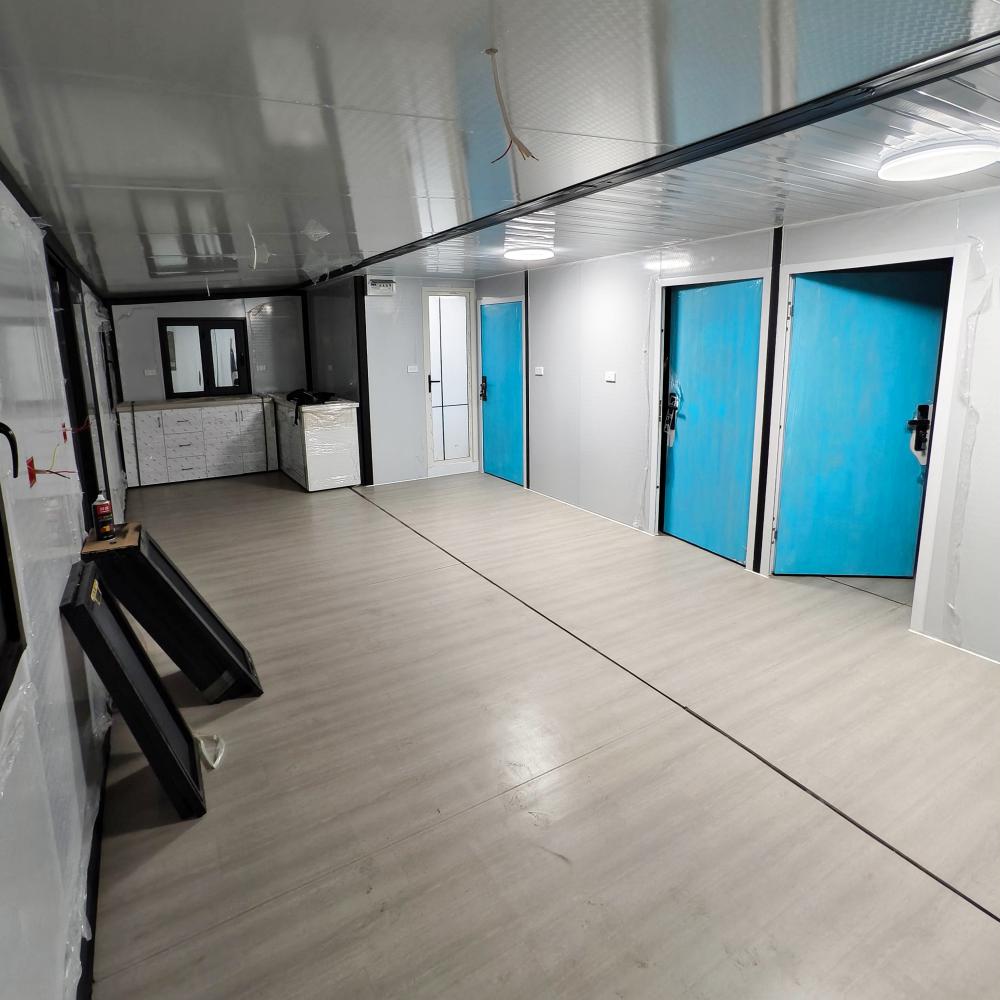

The 72㎡ prefabricated expandable container house features 3 bedrooms, an open L-shaped kitchen, a dry-wet bathroom, and a bright living area. Grey insulated panelsdefine functional zones, achieving over 90% space utilization — ideal for multi-generational living, corporate dormitories, and more.
2. Passive Insulation Performance
Grey insulated wallsand floors with XPS thermal barriers, combined with white PVC windows, offer a U-value ≤0.35W/(㎡·K). Raising winter temperatures by 5℃ and reducing annual energy use by 35%, it excels in cold, humid climates.
3. Modular Quick Assembly
Factory-prefabricated grey frames and insulated modules, with integrated white entry doors and PVC windows, enable on-site assembly in just 3 days — 70% faster than traditional construction, supporting relocation and reuse.
4. Safety-Driven Details
The distribution box includes overload protection; the bathroom uses anti-slip flooring and waterproof panels. The grey frame withstands 8-level winds, and the white entry door has a built-in anti-theft lock, ensuring all-round living security.
5. Cross-Scenario Adaptability
The 40×20×8.3ft size suits rural homestays, emergency housing, and campsite facilities. The grey exterior blends naturally with rural environments, and the expandable prefabricated structure can extend to 90㎡ for future functional upgrades.
Internal & external facilities details
Frame Construction & Wall Panels & Roofs
The Prefab House frame construction is grey, made of thick galvanized steel square tube. Exterior and interior wall panels are made of white galvanized steel sheets, with a 75cm thickness of flame-retardant foam board in between.
Spacious Doors
Included 1 glass entrance door, 1 bathroom door, and bedroom doors as customized requirement. All doors come with standard factory configurations, all equipped with locks.
Security & Bright Windows

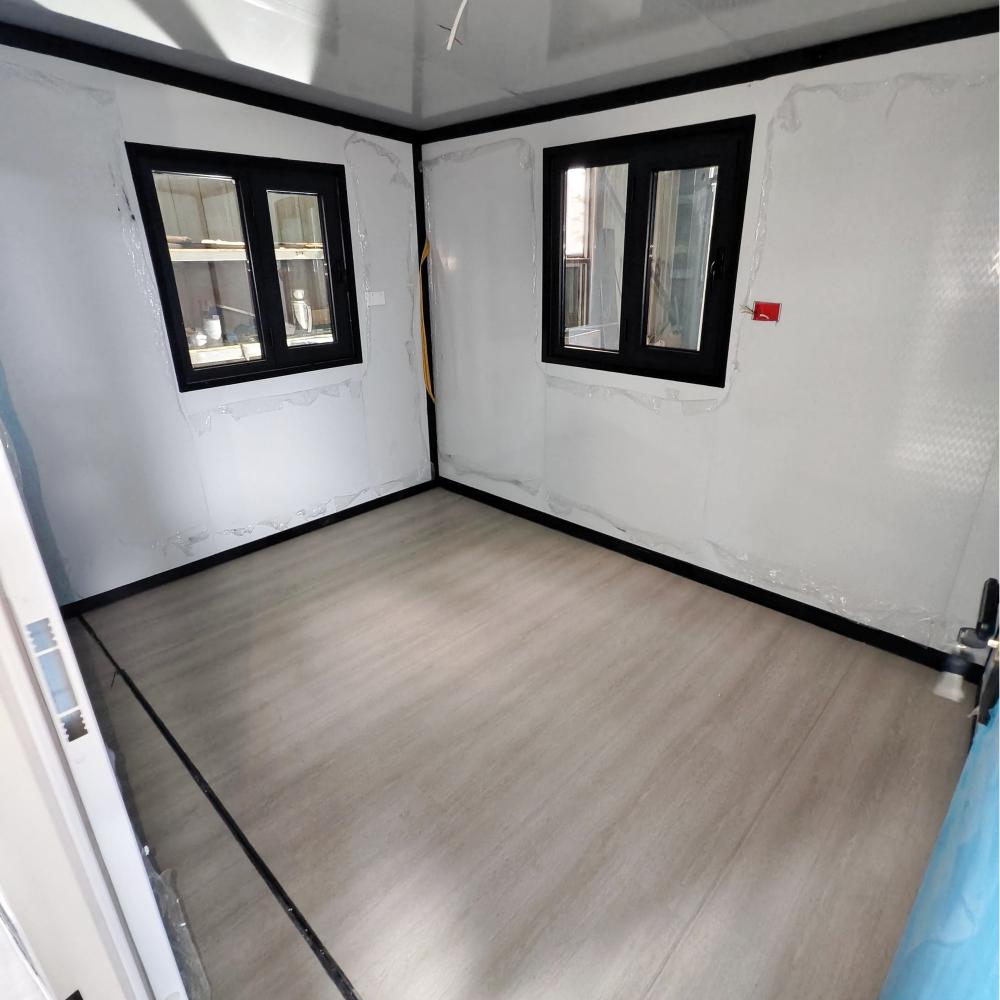

9 windows in total (including small 1 for bathroom), all made of aluminum alloy, in white external suspended style with built-in security bars, mosquito screens and locks.
Luxury Flooring
Made with 18mm thick cement-fiber boards, topped with 2mm thick PVC material flooring in a light wood grain pattern.
Full Set Bathroom

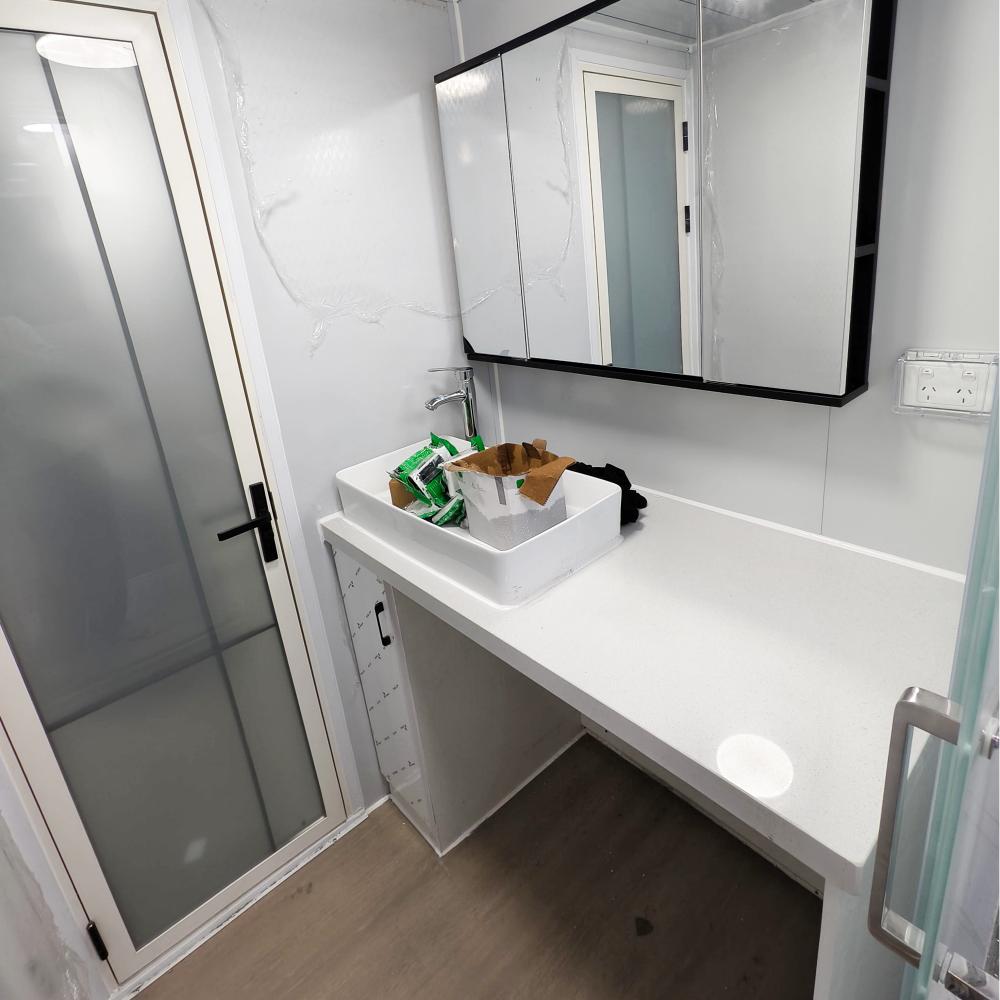

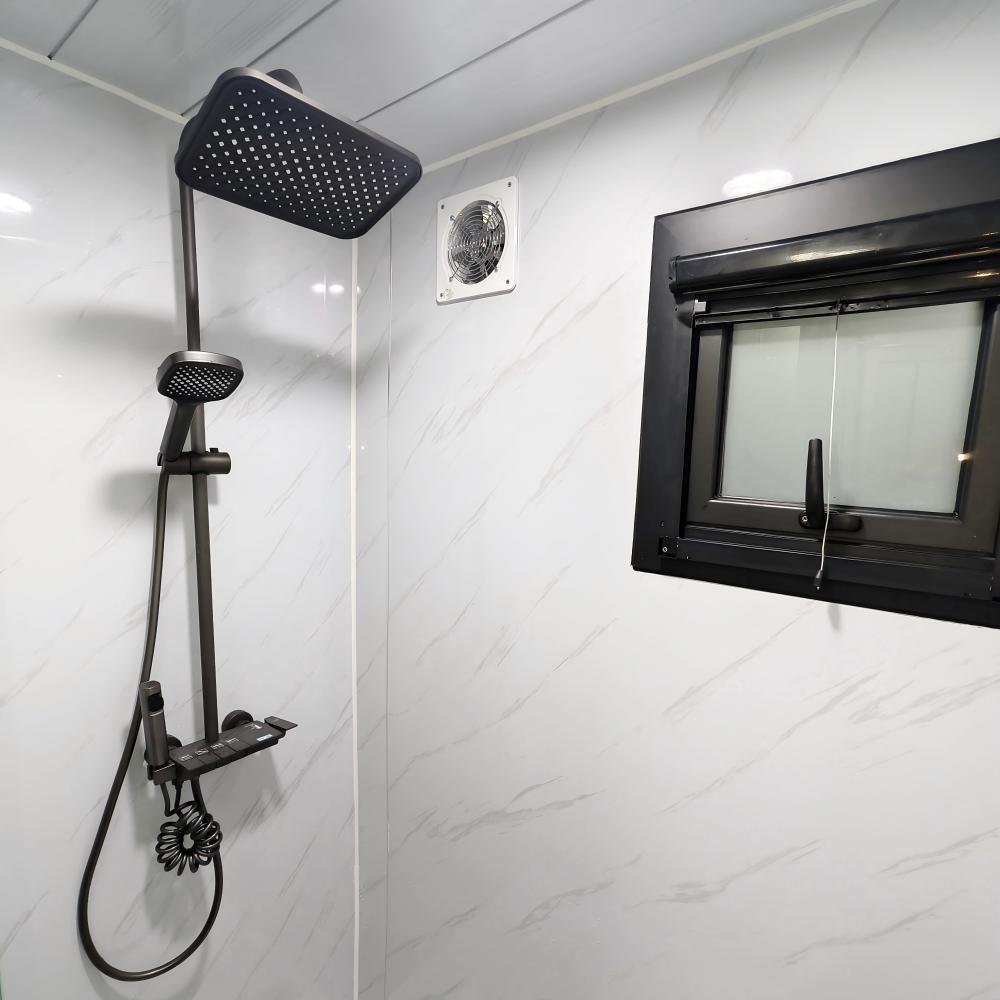

we provide a pre installed comprehensive dry-wet separated bathroom. The dry area comprises a toilet, adjustable hot and cold water faucet, a sink and a wall-mounted mirror.The shower area is independent and prefabricated with a showerhead and other standard accessories included
L Shaped Cabinet Set

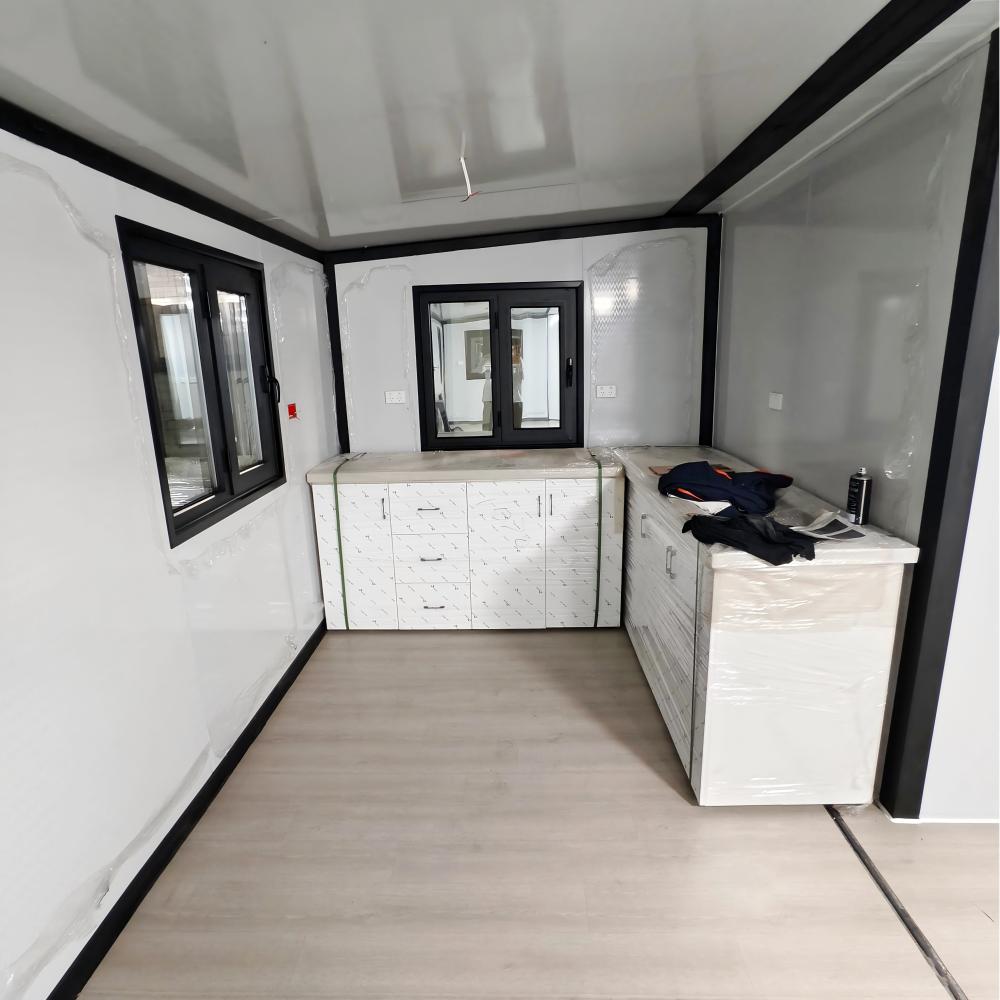

Includes a set of white L-shaped cabinets with a white high quality sintered stone material countertop, an adjustable hot and cold water faucet, and a sink. Because of the enough space on cabinets surface, you can place some general cooking tools,microwave oven,etc.
External Water Pipe Connection
The external water pipe connections are installed ready. Included sewer pipe, drain pipe, cold water pipe and hot water pipe connections. So you need to complete the connections with your prepared main water source and sewage tank.
Electrical Configuration

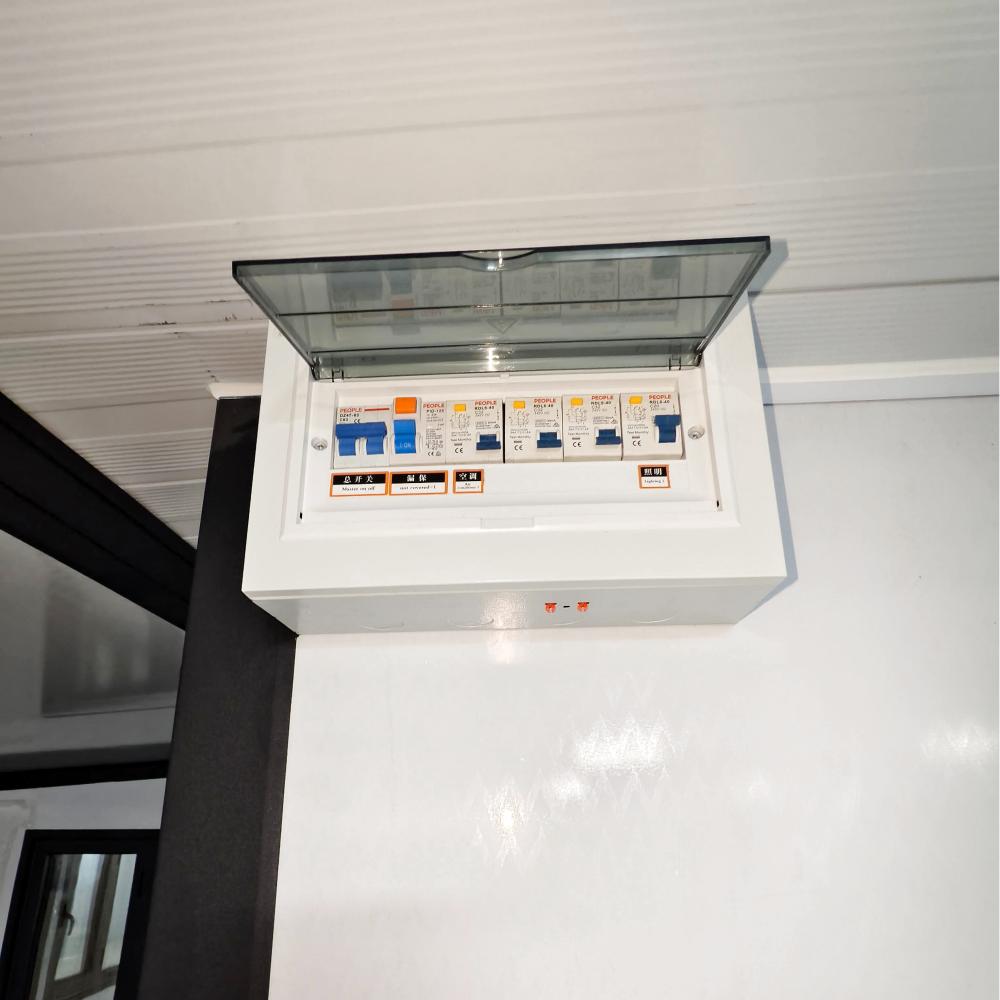

The electrical setup complies with US standards and includes required distribution box, lights, switches, sockets and air conditioning sockets, with all sockets mounted at a height of 450mm from the floor.
notice info
Transportation Process
After you complete the payment and after the house prefabricated, as a special oversized item, this container home will be shipped from our factory to the nearest port via sea freight. From there, the fold out house will be delivered to your specified location via truck. Before the truck arrangement, We will contact you to schedule the delivery time for a smooth receipt.
Receiving Attention
Before purchase, you need to plan the location for receiving the mobile house, ensuring there is enough space and a flat hardened surface to unloading this prefab home. Based on the information of our container house folded dimension L40 x W7.3 x H8.3 ft and weight 13000 lb. You also need to arrange for appropriate unloading machinery, such as a crane, in preparation for the scheduled delivery time.
Installation Attention
This manufactured home does not come with on-site installation workers; you will need to arrange for 6-8 people to assist with the setup. The fold up house features Hydraulic brace on both side panels, and the package includes installation tools such as Hinge pulley block and Wire rope for assembly. Please refer to the instruction and installation videos for guidance.
Customer Service
Regardless of any issues you may encounter when purchasing our container house, such as product-related concerns, transportation, delivery, installation, etc., please do not hesitate to contact our professional customer service team. We are committed to assisting you in resolving any problems you may face.
