Feekercn Combination Prefabricated Expandable Container Home (40+20ft Dual-Unit Linkage) - Gable Roof with Railed Terrace (Wood-Grain Insulated Panels/Black Frame, Freely Expandable Space)
Color
Wooden Panels & Black Structure & Glass door/windows
Product Dimensions
Unit 1：40×20ft
Unit 2：19×10ft
Floor Area
990 Square Feet, 2 Units Combined
Layout Inside the tiny home
Customized Bedrooms, Bathroom, Kitchen, Living room
Specification of The Feekercn modular housing
·Layout Inside the tiny home: Customized Bedrooms, Bathroom, Kitchen, Living room
·Main Usage: Prefab Container House to live in for adults
·House Area: 990 sqft
·External Dimensions: L40 x W20 x H8.3 ft for 1st unit, L19 x W10 x H8.3 ft for 2st unit, 2 units total
·Folded Dimensions: L40 x W7.3 x H8.3 ft for 1st unit, L19 x W10 x H8.3 ft for 2st unit, 2 units total
·Weight: 20000 lb
features
1. Dual-Unit Space Breakthrough

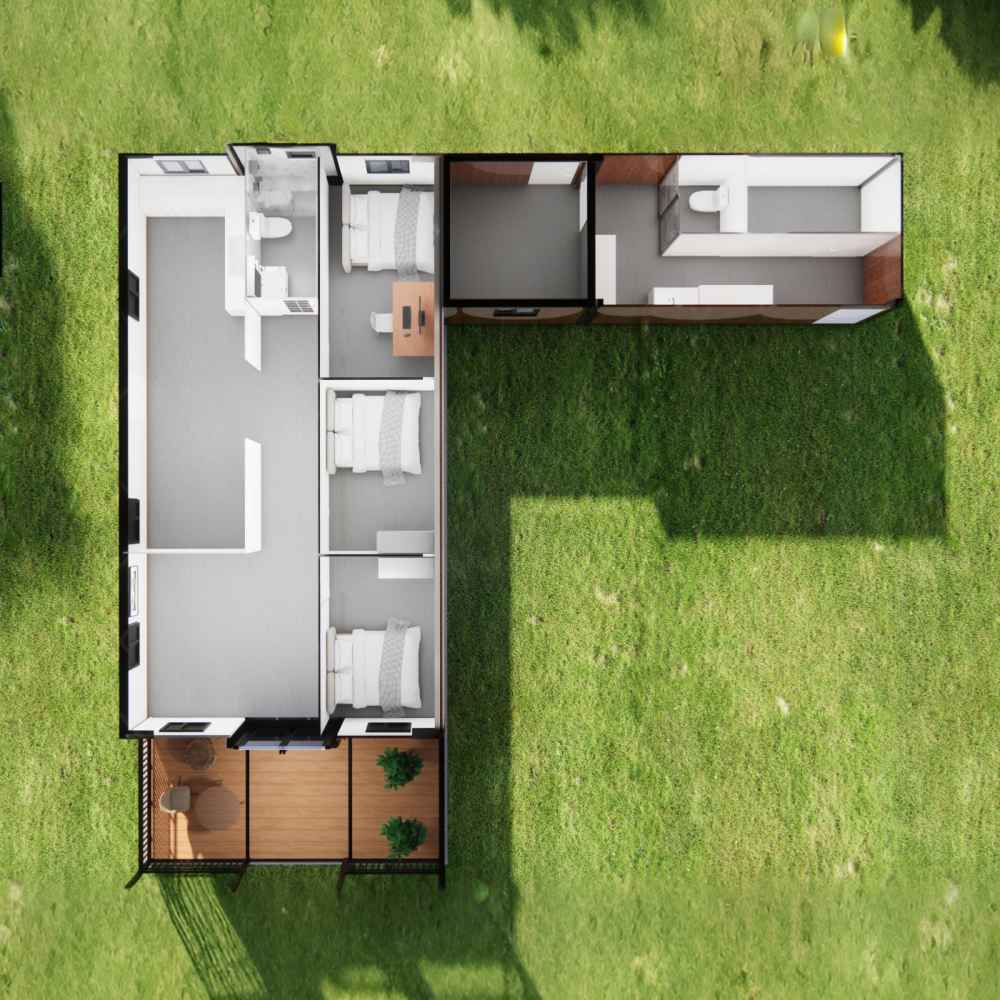

Combining a 40ft expandable unit and a 20ft quick-assemble unit, the gable roof increases vertical height by 30cm, and a railed terrace extends 20㎡ of outdoor interaction space. The L-shaped layout accommodates 3 bedrooms, dual living areas, and a dry-wet bath, achieving over 92% space utilization — ideal for family stays, campsite clusters, and complex scenarios.
2. Elevated Architectural Aesthetics
Wood-grain insulated panels + black frame outline the architectural silhouette; the gable roof enhances three-dimensionality, and a full-glass entrance unifies lighting between dual units. The terrace’s wood texture improves integration with countryside/estate environments by 50%.
3. Passive Insulation System
Wood-grain panels with rock wool insulation, multi-chamber sealed black aluminum-clad windows, and a gable roof with insulated eaves raise winter temperatures by 6℃ and reduce annual energy use by 45%, enabling energy-efficient cross-season living.
4. Modular Quick-Assembly Logic
Dual units (expandable + quick-assemble + terrace components) are prefabricated in the factory, with on-site hoisting completing the main structure in 2 days. The black frameoffers 20-year anti-corrosion, and wood-grain panels have 15-year weather resistance, cutting lifecycle maintenance costs by 40%.
5. Flexible Scene Adaptation
The combination structure supports independent splitting (40ft/20ft used separately) or extended splicing. The gable roof + terrace suit campsite homestays, private farms, emergency housing, etc., enabling free functional upgrades.
Internal & external facilities details
Frame Construction & Wall Panels & Roofs
The Prefab House frame construction is grey, made of thick galvanized steel square tube. Exterior and interior wall panels are made of white galvanized steel sheets, with a 75cm thickness of flame-retardant foam board in between.
Spacious Doors
Included 1 glass entrance door, 1 bathroom door, and bedroom doors as customized requirement. All doors come with standard factory configurations, all equipped with locks.
Security & Bright Windows
9 windows in total (including small 1 for bathroom), all made of aluminum alloy, in white external suspended style with built-in security bars, mosquito screens and locks.
Luxury Flooring
Made with 18mm thick cement-fiber boards, topped with 2mm thick PVC material flooring in a light wood grain pattern.
Full Set Bathroom
we provide a pre installed comprehensive dry-wet separated bathroom. The dry area comprises a toilet, adjustable hot and cold water faucet, a sink and a wall-mounted mirror.The shower area is independent and prefabricated with a showerhead and other standard accessories included
L Shaped Cabinet Set
Includes a set of white L-shaped cabinets with a white high quality sintered stone material countertop, an adjustable hot and cold water faucet, and a sink. Because of the enough space on cabinets surface, you can place some general cooking tools,microwave oven,etc.
External Water Pipe Connection
The external water pipe connections are installed ready. Included sewer pipe, drain pipe, cold water pipe and hot water pipe connections. So you need to complete the connections with your prepared main water source and sewage tank.
Electrical Configuration
The electrical setup complies with US standards and includes required distribution box, lights, switches, sockets and air conditioning sockets, with all sockets mounted at a height of 450mm from the floor.
notice info
Transportation Process
After you complete the payment and after the house prefabricated, as a special oversized item, this container home will be shipped from our factory to the nearest port via sea freight. From there, the fold out house will be delivered to your specified location via truck. Before the truck arrangement, We will contact you to schedule the delivery time for a smooth receipt.
Receiving Attention
Before purchase, you need to plan the location for receiving the mobile house, ensuring there is enough space and a flat hardened surface to unloading this prefab home. Based on the information of our container house folded dimension and weight 20000 lb. You also need to arrange for appropriate unloading machinery, such as a crane, in preparation for the scheduled delivery time.
Installation Attention
This manufactured home does not come with on-site installation workers; you will need to arrange for 6-8 people to assist with the setup. The fold up house features Hydraulic brace on both side panels, and the package includes installation tools such as Hinge pulley block and Wire rope for assembly. Please refer to the instruction and installation videos for guidance.
Customer Service
Regardless of any issues you may encounter when purchasing our container house, such as product-related concerns, transportation, delivery, installation, etc., please do not hesitate to contact our professional customer service team. We are committed to assisting you in resolving any problems you may face.
